Verisurf Solution Suites

Everything You Need to Improve Quality and Productivity.

Verisurf Software Solution Suites are designed to address today’s most common measurement and reporting needs. Pulling from Verisurf application modules, the Solution Suites deliver high performance, efficiency, and cost-effective answers for quality verification and increased productivity in manufacturing. All Solution Suites are scalable and additional application modules can be added later should the need arise. As with all Verisurf software, Solution Suites are compatible with all new and existing hardware.

Inspection Suite

Quickly verify finished parts against nominal 3D CAD data or blueprints. Complete first article inspections and generate meaningful reports in minutes.

The Verisurf Inspection Suite is easy to learn and easy to use with its rapid Align / Inspect / Report workflow. The solution includes Verisurf CAD and MEASURE modules and supports all CMMs. When creating inspection plans, intelligent GD&T data can be edited, and additional annotations created to conform with all quality reporting requirements. The Verisurf Inspection Suite is cost effective and easy to expand as needs increase

  • Extensive CMM arm and laser tracker support
  • Fast, easy device-to-part alignment
  • Extensive geometry file type read ability
  • Inspect to blueprints or nominal CAD
  • Annotate and edit associative GD&T
  • Extensive report customization and export
  • Build and save inspection routines with AutoInspect

3D Scaning and Inspection Suite

Inspect anything; use any device; probe, scan, or use a tracker to produce actionable results fast!

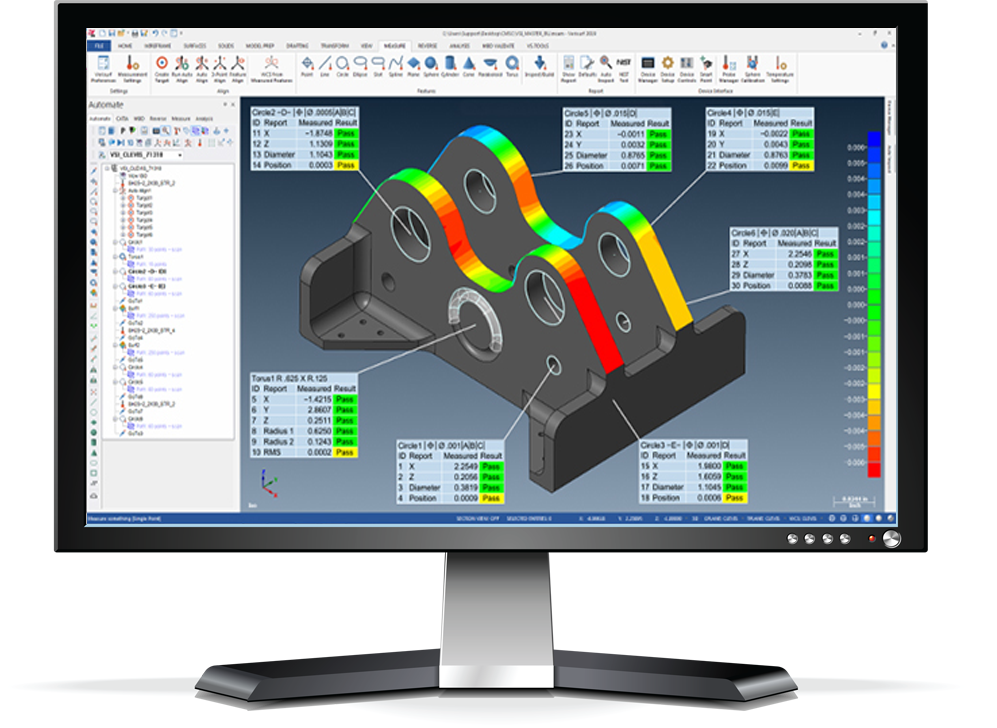

The Verisurf 3D Scanning and Inspection Suite integrates Verisurf’s CAD, MEASURE and ANALYSIS modules and tackles inspection challenges headon. Verisurf’s unique, CAD-based architecture can read any file format, interoperate with any common, portable CMM (including arms, trackers, and scanning systems) and has the most flexible reporting capabilities available. Create colorful deviation plots highlighting any nonconformance between measured parts and nominal CAD—all in a Windows-standard graphical interface that always delivers a superior user experience.

  • Flexible best fit options reduce scrap and rework
  • Embed stunning color results in your reports
  • Use any arm, tracker or CMM
  • Fastest align-inspect-report
  • Measure any 2D or 3D feature type
  • Memorize steps to create reusable plans
  • Full MBD (GD&T) import and annotation
  • Compare as-built to any nominal CAD source
  • Advanced best fit increases conformance rates
